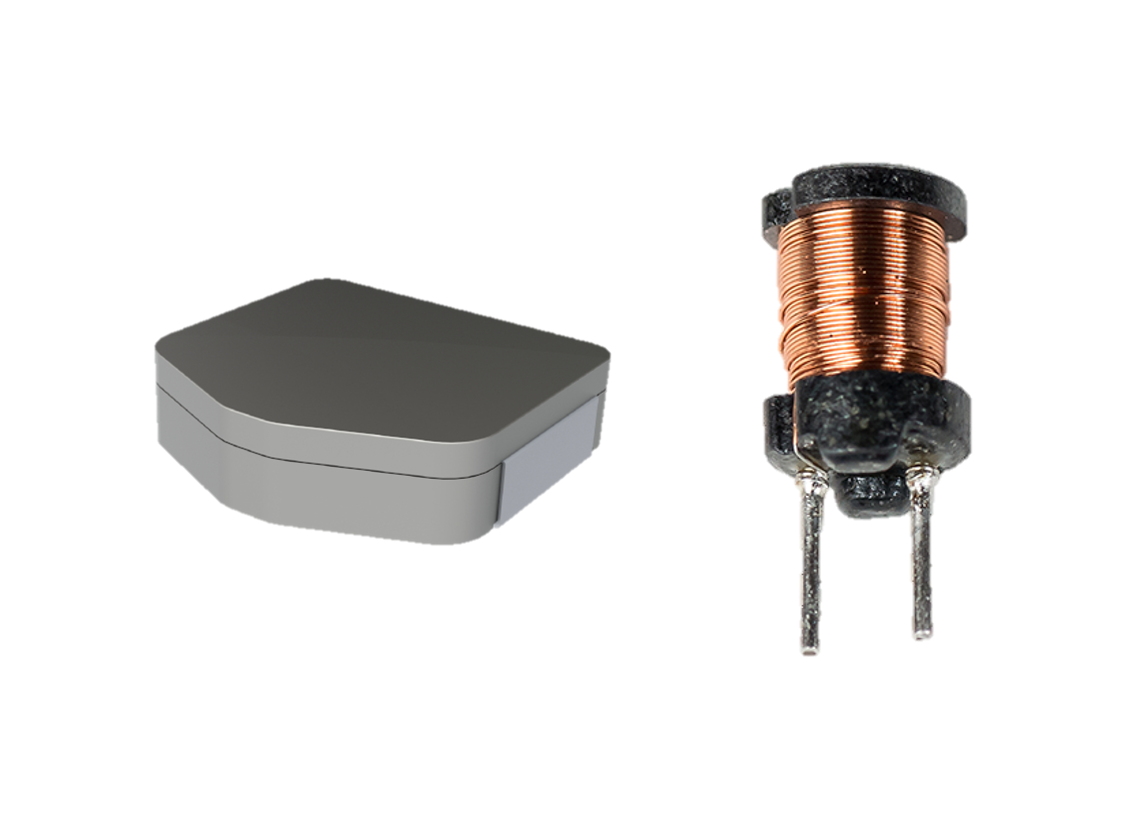

Inductors

SMD Inductor

Series	Temperature Range	Rated Inductance Range (at 100 kHz, 1 mA)	Rated DC Resistance Range	Rated Current Range
MPCH Series	-40℃ to +125℃	0.12 μH ~ 1.5 μH	0.65 mΩ ~ 2.3 mΩ	17 A ~ 32 A
MPCV Series	-55℃ to +155℃	0.12 μH ~ 1.5 μH	1.4 mΩ ~ 2.5 mΩ	22 A ~ 32 A
MPEV Series	-55℃ to +180℃	0.47 μH ~ 47 μH	2.4 mΩ ~ 186.3 mΩ	2.7 A ~ 26.4 A
MPGV Series	-55℃ to +155℃	0.47 μH ~ 47 μH	1.9 mΩ ~ 135.2 mΩ	3.6 A ~ 30.9 A
MPLCG Series	-40℃ to +125℃	0.22 μH ~ 4.7 μH	2.7 mΩ ~ 74 mΩ	4.5 A ~ 14.1 A
MPLCV Series	-55℃ to +155℃	4.7 μH ~ 47 μH	20 mΩ ~ 175 mΩ	2.1 A ~ 7.1 A
MPX Series	-55℃ to +155℃	0.1 μH ~ 100 μH	0.52 mΩ ~ 341.2 mΩ	2 A ~ 92 A
MPXV Series	-55℃ to +155℃	0.1 μH ~ 100 μH	0.48 mΩ ~ 341.2 mΩ	2 A ~ 90 A
TPI Series	-40℃ to +125℃	47 μH ~ 230 μH	0.29 mΩ ~ 0.32 mΩ	36 A ~ 53 A

Through-Hole Inductor

Series	Temperature Range	Rated Inductance Range (at 10 kHz, 1 mA)	Rated DC Resistance Range	Rated Current Range
SBC1 Series	-20℃ to +105℃	1 μH ~ 1,500 μH	0.03 Ω ~ 8 Ω	0.18 A ~ 3.1 A
SBC2 Series	-20℃ to +105℃	1 μH ~ 3,300 μH	0.01 Ω ~ 13.8 Ω	0.09 A ~ 6.1 A
SBC3 Series	-20℃ to +105℃	1.2 μH ~ 6,800 μH	0.01 Ω ~ 14.5 Ω	0.11 A ~ 7.5 A
SBC4 Series	-20℃ to +105℃	1 μH ~ 10,000 μH	0.01 Ω ~ 19.5 Ω	0.11 A ~ 7.4 A
SBC6 Series	-20℃ to +105℃	1 μH ~ 10,000 μH	0.01 Ω ~ 13.6 Ω	0.16 A ~ 9.6 A
SBC7 Series	-20℃ to +105℃	6.8 μH ~ 10,000 μH	0.02 Ω ~ 10.3 Ω	0.19 A ~ 6.1 A
SBC8 Series	-20℃ to +105℃	4.7 μH ~ 10,000 μH	0.01 Ω ~ 6.9 Ω	0.25 A ~ 9.2 A
SBC9 Series	-20℃ to +105℃	1 μH ~ 10,000 μH	0.01 Ω ~ 16.1 Ω	0.12 A ~ 9.8 A
SBCP-11HY Series	-20℃ to +105℃	1.5 μH ~ 1,000 μH	0.02 Ω ~ 1.7 Ω	0.42 A ~ 5 A
SBCP-14HY Series	-20℃ to +105℃	1.2 μH ~ 10,000 μH	0.02 Ω ~ 10.86 Ω	0.17 A ~ 5.2 A
SBCP-47HY Series	-20℃ to +105℃	1.2 μH ~ 1,500 μH	0.021 Ω ~ 8 Ω	0.13 A ~ 3 A
SBCP-80HY Series	-20℃ to +105℃	1.5 μH ~ 10,000 μH	0.02 Ω ~ 19.1 Ω	0.1 A ~ 4.5 A
SBCP-87HY Series	-20℃ to +105℃	1 μH ~ 1,000 μH	0.02 Ω ~ 2.82 Ω	0.25 A ~ 4.5 A
